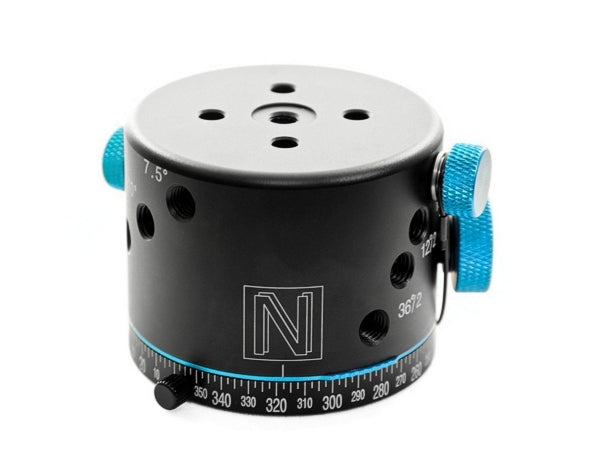

Advanced Rotator RD16-II - F1161

Part in a series of Fanotec's new top of the line CNC machined advanced rotators. These rotators combine high precision, ease of use, compactness, light weight and durability. The inner ball bearing construction also provides for very fluid rotation. You can now change click stops on-the-fly. The RD16 has 16 different selectable click options.

Features

• Made from imported premium quality aluminum alloy.
• Precision CNC machined components.
• Lubricated bearings for smooth rotation.
• Laser engraved markings.
• Detent interval (click stop) option can be changed in seconds on the fly.
• More than 10 kg (22 lbs) loading supported.
• Knob for locking rotation.
• Retainer wire so you don't lose the knobs.
• Ideal for making HDR panos and/or mosaics.
• Great in windy locations.
• Small nadir footprint.
• Small nadir footprint diameter of 62mm.
• The unique placement of knobs means that they will never appear in the spherical panos.
• Fine 2.5 degree rotation markings for making high resolution mosaics.
• Compact and light weight - only 347 grams.
• 16 different degree stop increments (with equivalent number of stops around) include:


  • 3.75 (96 stops)*
  • 5 (72 stops)*
  • 6 (60 stops)*
  • 7.5 (48 stops)
  • 10 (36 stops)
  • 12 (30 stops)
  • 15 (24 stops)
  • 18 (20 stops)*
  • 20 (18 stops)
  • 24 (15 stops)
  • 30 (12 stops)
  • 36 (10 stops)
  • 45 (8 stops)
  • 60 (6 stops)
  • 90 (4 stops)
  • 120 (3 stops)
    * Requires dual detent plungers.

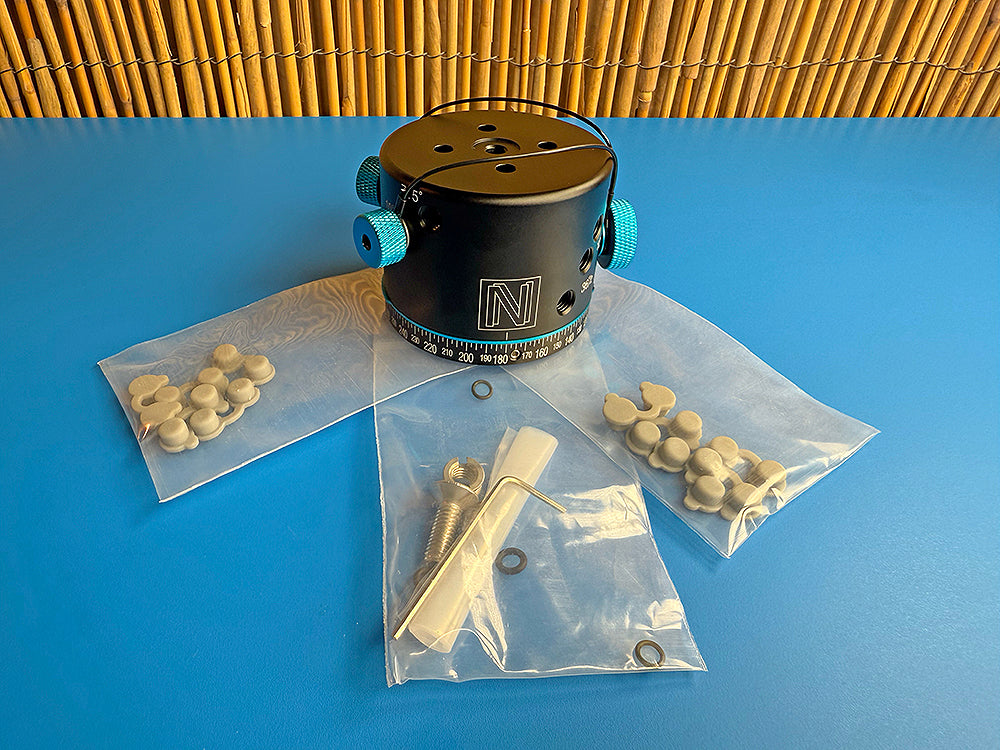

• Package includes

  • RD16-II rotator
  • 2 each blue anodized knobs
  • 1 each blue anodized locking knob
  • Your choice of NN3/4/5 mounting kit



  Specifications

  • Weight - 400gr (14 oz)
  • Height - 48mm (1 7/8") x Diameter: 62mm (2 3/8")
  • Maximum weight load: 11kg (22lbs)
  • Ideal working weight load: approx 5.5kgs (12lbs)
  • Metal: Anodized aluminum
  • Base Color = Non-glare black
  • Thread = base 3/8", top M6 Demarcations (reference tic marks) every 2.5 degrees
