Advanced Rotator Panning Clamp PCD5 - F1195

More compact and lighter than the RD16-II or RD8. Low profile 26 mm thick. Small nadir footprint with a 62 mm effective diameter.

This rotator allows for the most popular rotational click stops: 5°,10°,12°, 24°, 30°. The rotator is Arca-swiss compatible and primarily designed for use with a professional ball head.

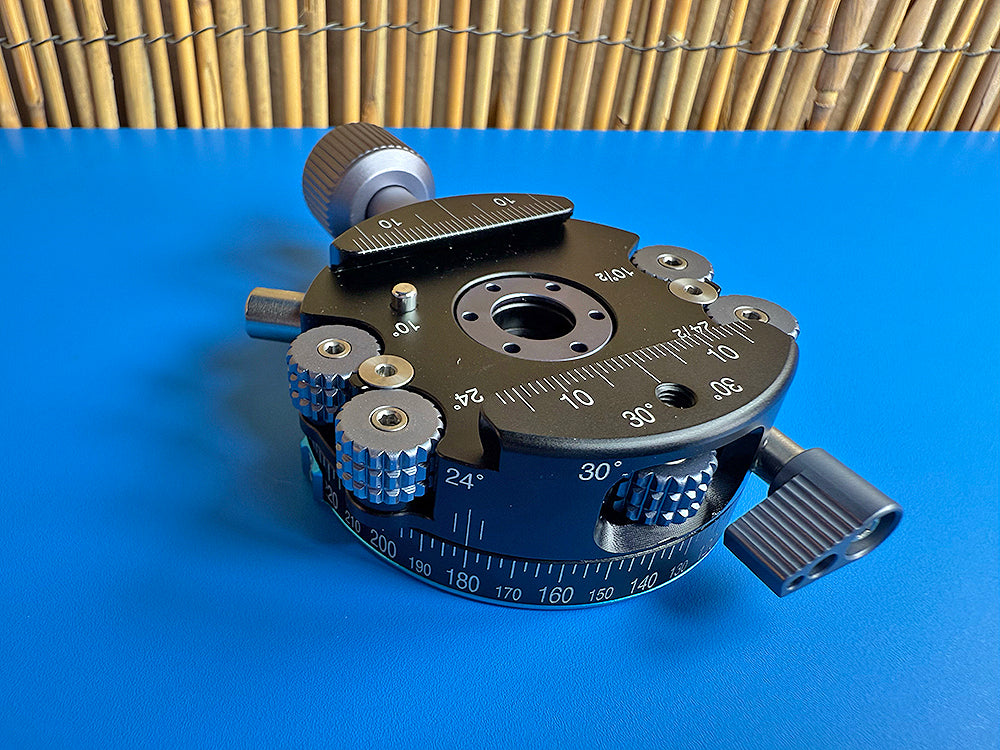

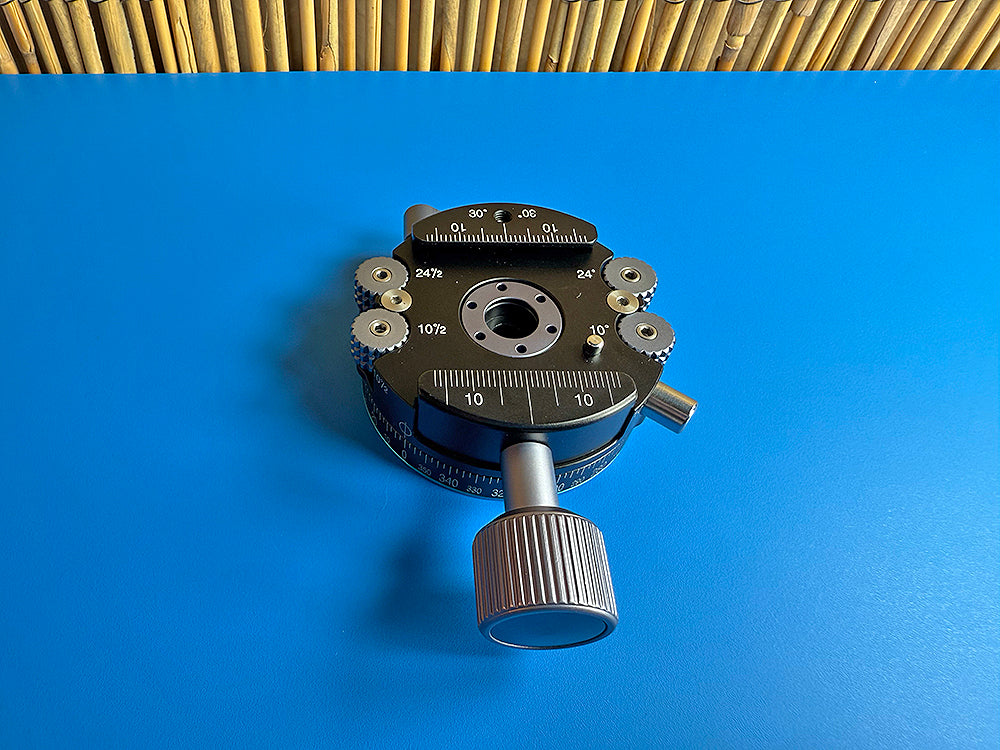

Very intuitive by design. Rotate all knurled detent knobs counter-clockwise for free rotation. When selecting click-stops make sure proper knurled knobs are fully sitting by rotating clockwise.

For 5° click stops rotate clockwise both 10° and 10°/2 knurled knobs.
For 10° click stops rotate clockwise only the 10° knurled knob.
For 12° click stops rotate clockwise both 24° and 24°/2 knurled knobs.
For 24° click stops rotate clockwise only the 24° knurled knob.
For 30° click stops rotate clockwise only the 30° knurled knob.

Features:

• Low profile 26 mm/ 1" thick, and light weight 205 g/ 7.2 oz.
• Small nadir footprint with a 62 mm effective diameter.
• 5 selectable click-stops 5°,10°,12°, 24°, 30°.
• Acra-swiss clamp with locking pin.

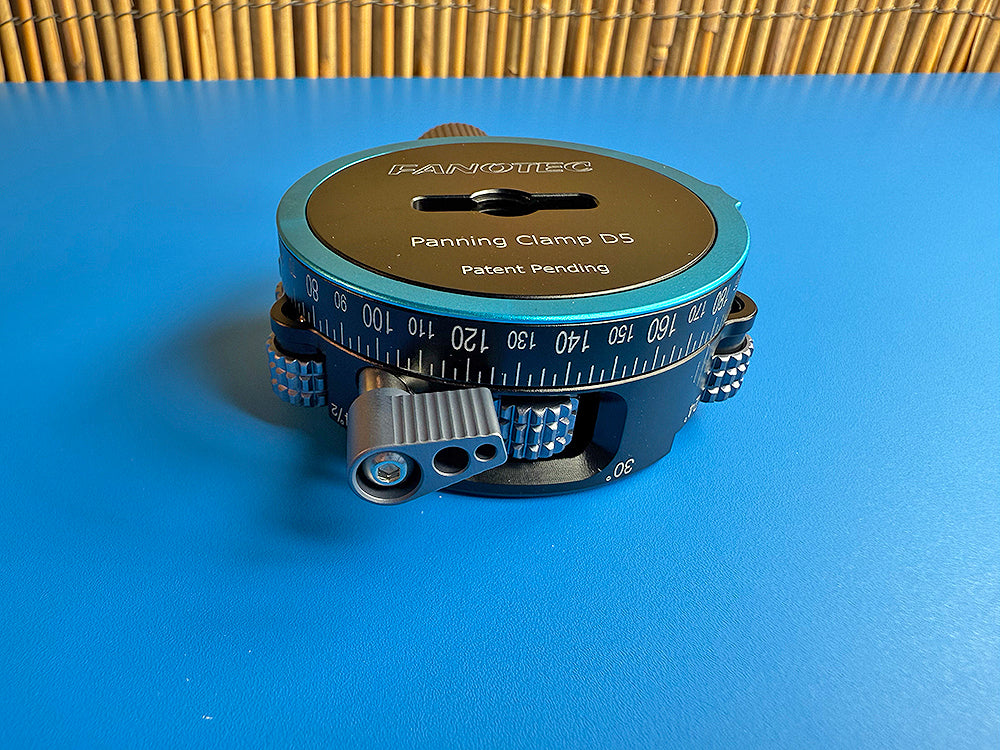

• Rotator locking lever.

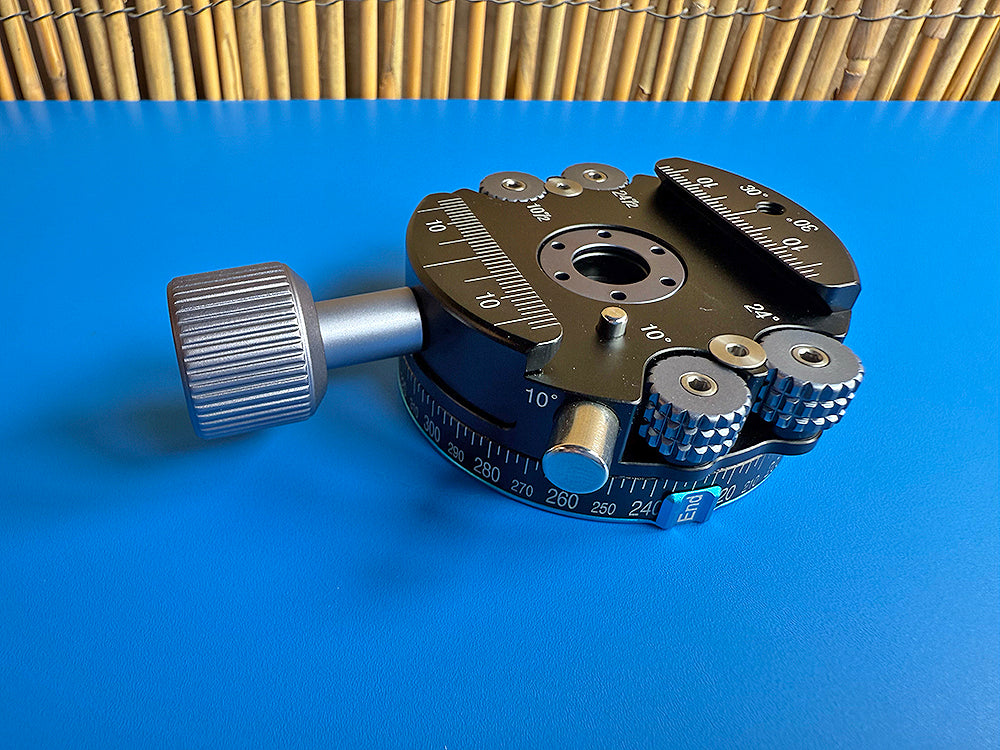

• End Tab (blue) allows for free movement across index scale to mark desired end positioning.

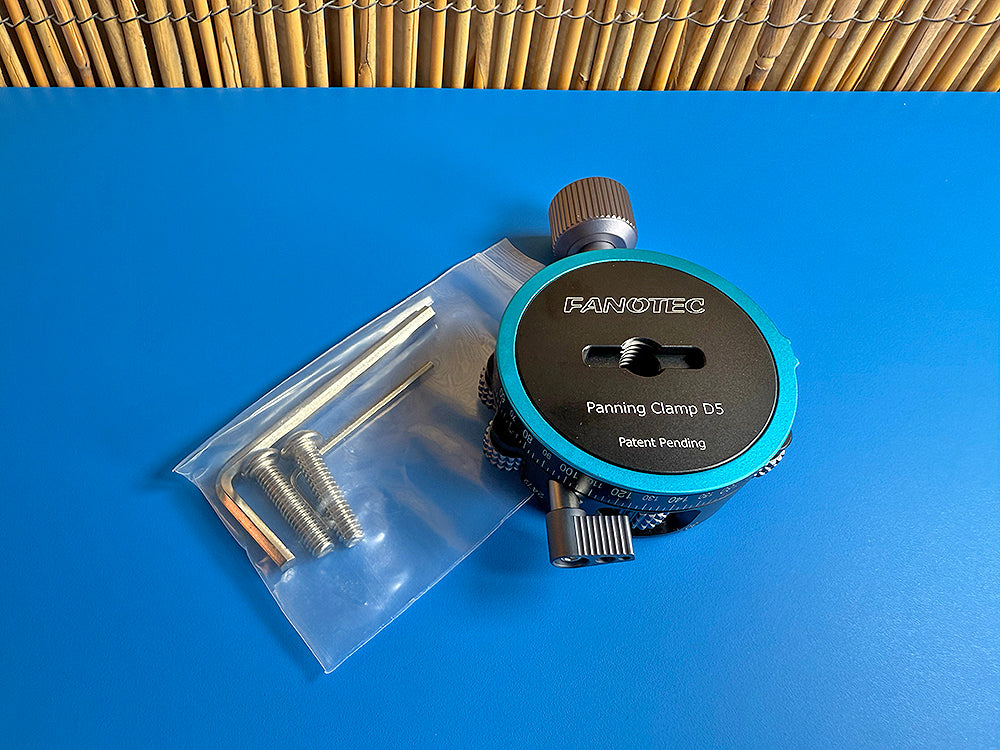

• 1/4" and M6 male screws for mounting to tripod.
• Full bearing loaded for smooth rotation.
• Load rating: 5 kg/ 11 lbs or more.
